Ceramic 3D Printer 3DCR-200
3DCR-200 is a ceramic 3d printer that adopts SL(stereo-lithography) technology.
It possesses features such as high forming precision, rapid printing speed of complex parts, low cost for small-scale production, and so on.
Introduction to Ceramic 3D Printers
3DCR-200 is a ceramic 3d printer that adopts SL(stereo-lithography) technology.
It possesses features such as high forming precision, rapid printing speed of complex parts, low cost for small-scale production, and so on.
3DCR-200 can be used in the aerospace industry, automobile industry, chemical reaction container production, electronic ceramics production, medical fields, arts, high-end customized ceramic products, and more.
Max build volume: 200*200*200 (mm)
Key Features
High Precision, with precision detection report
Precise strike blade system with intelligent coating technology, rapid and smooth material filling. Adjustable printing thickness from 0.01mm-0.15mm. Printing precision up to 土0.1mm/100mm.
High Efficiency
Rapid scanning speed and high printing efficiency, simultaneous printing of multiple products.
Open Technological Parameters
Technological parameters are adjustable, facilitating the R&D of new materials.
Piston Resin Vat
Can print multiple ceramic materials; No requirement of full-vat material, saves cost; Can print highly viscous material.
Cyclic Material Mixing System
Install a cyclic material mixing system to solve component sedimentation and maldistribution.
Support Multiple Printing Materials
Support printing of aluminum oxide, zirconia, TCP, HAp, silicon nitride, and more materials.
Equipment Parameters
|
Model |
3DCR-100 |
3DCR-200 |
3DCR-300 |
|
Parameters |
|||
|
XY axis form size |
100mm(X)×100mm(Y) |
200mm(X)×200mm(Y) |
300mm(X)×250mm(Y) |
|
Z axis form size |
100mm (standard) <100mm (customize) |
200mm |
250mm |
|
Machine size |
1180×800×1780mm |
1300×910×1780mm |
1360*910*2000mm |
|
Resin vat |
piston |
||
|
Start package |
2L |
10L |
25L |
|
Forming precision |
±0.1mm（L≤100mm） or ±0.1%×L（L>100mm） |
||
|
Max Scanning speed |
10m/s |
||
|
Printing materials |
aluminum oxide, zirconia, TCP, HAp, silicon nitride and more materials |
||
|
Laser System |
|||
|
Laser type |
solid laser |
||
|
Wavelength |
355nm |
||
|
Laser power |
≤3000mW |
||
|
Scanning System |
|||
|
Galvanometer |
high precision galvanometer |
||
|
Light source |
light spot diameter 0.1-0.2mm |
||
|
Focus |
F-theta lens |
||
|
Elevation System |
|||
|
Elevation motor |
high precision linear actuator |
||
|
Resolution |
0.001mm |
||
|
Re-positioning accuracy |
±0.01mm |
||
|
Software |
|||
|
Operation system |
Win7 or above |
||
|
Software |
3DSLCON |
||
|
Data port |
STL, SLC format file |
||
|
Operation Environment |
|||
|
Power |
220VAC，50Hz |
||
|
Ambient temperature |
24~28℃ |
||
|
Ambient humidity |
20%~40% |
||

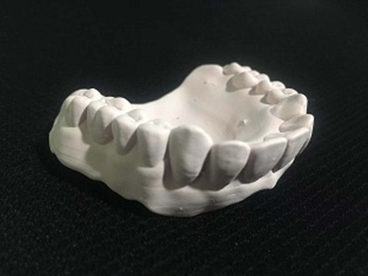

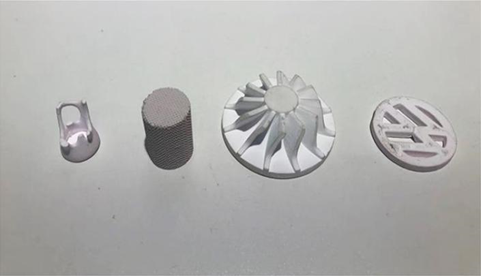

Application Cases:
